Following are the dimensions for Ammark's Water Managers:

Models BW, BW-PRV, SF, and SF-PRV

Model BW-HC

Model SF-MINI

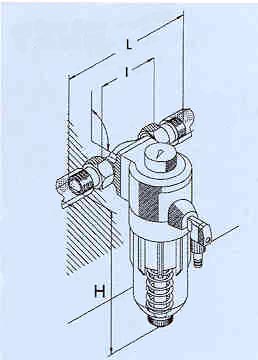

Models BW, BW-PRV, SF, and SF-PRV
Connect Sz A (in.) H (in.) I (in.) L (in.)
15.75 3.86 6.22
1 15.75 4.25 6.85
1 15.75 4.45 7.52


Top of Page

Model BW-HC
Connect Sz (in.) H (in.) I (in.) L (in.)
1 23.62 5.91 9.45
2 23.62 5.91 10.43


Top of Page

Model SF-MINI
Connect Sz (in.) H (in.) I (in.) L (in.)
5.28 3.54 6.22
1 5.28 3.94 6.85
1 5.28 4.13 7.52


Top of Page
